Product number 048

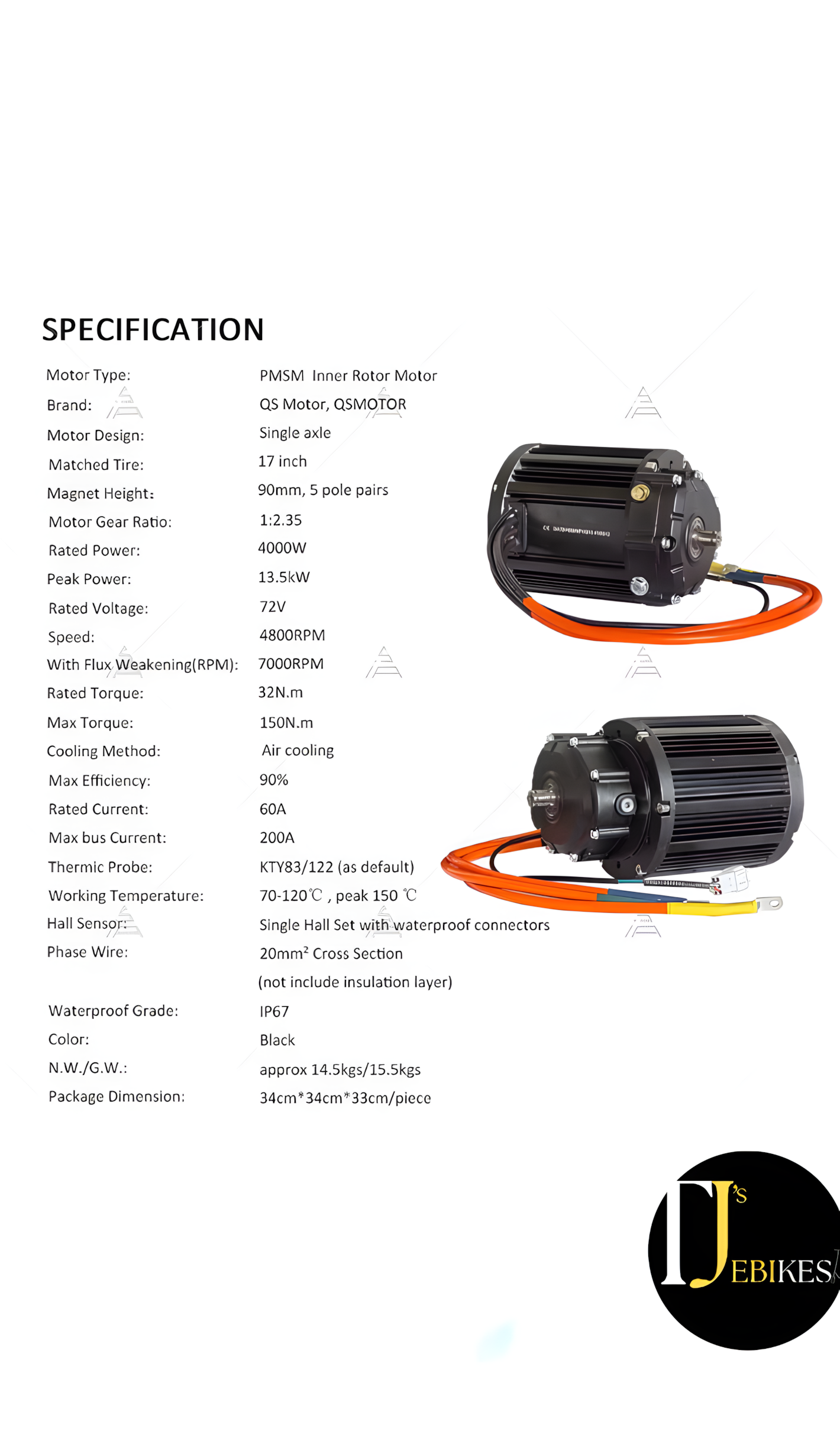

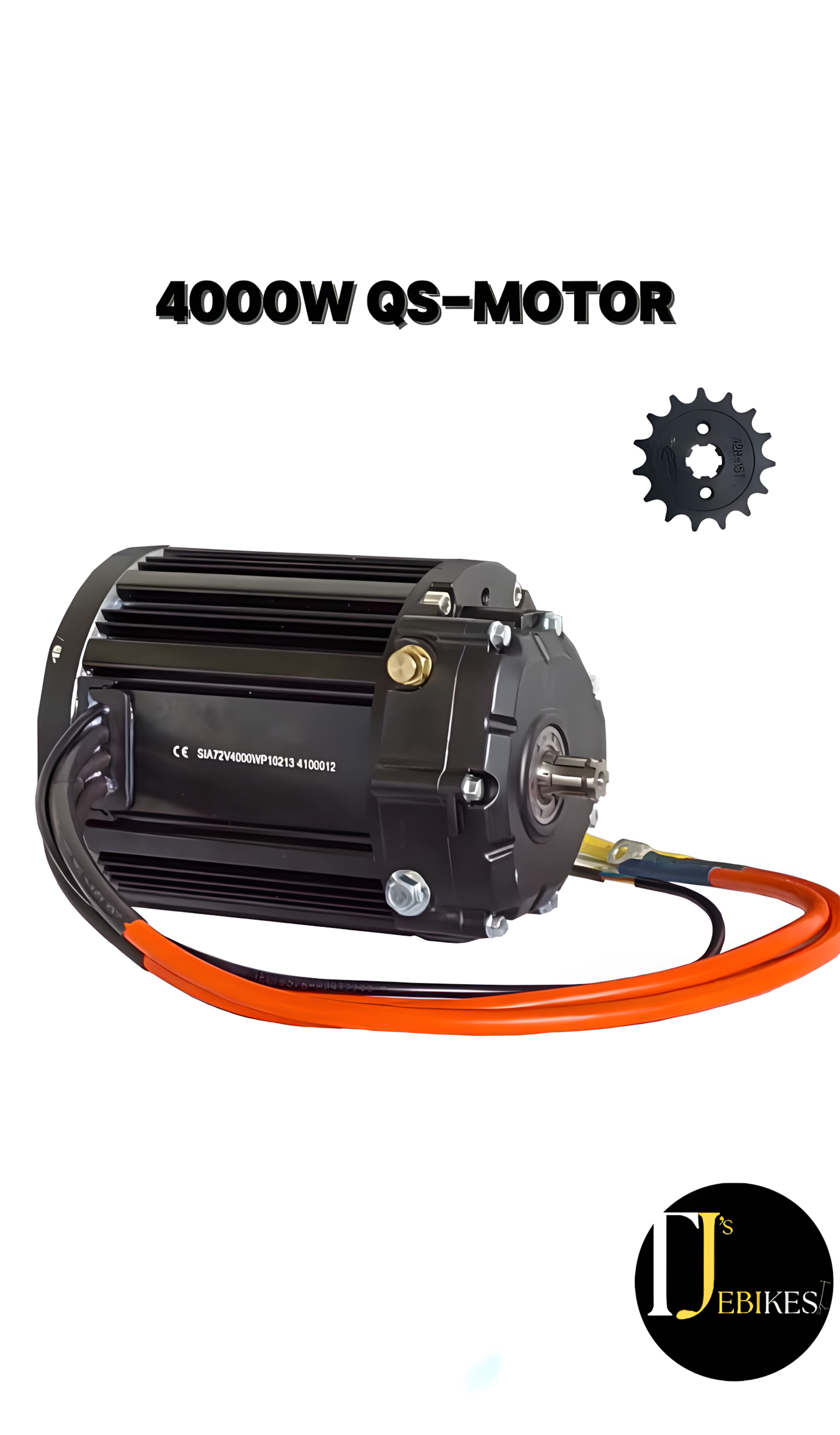

Motor type:PMSM Inner Rotor MotorBrand:QSMOTORMotor Design:Single axleMagnet Height:90mm,5 pole pairsMotor Gear Ratio:1:2.35Rated power:4000WPeak Power:13.5KWRated voltage:72VSpeed:4800RPMRated Torque:32N.mMax torque:150N.mCooling methods:Air CoolingMax efficiency:90%Thermic probe:KTY83/122Working temperature:70-120℃, peak150℃Hall sensor:Single Hall set with waterproof connectorsPhase cable:20mm²cross Section (not include insulation layer)Waterproof grade:IP67Color :BlackN.W./G.W.:approx14.5kgs/15.5kgsPacking dimension:34cm*34cm*33cm/piece
Please be aware that these kits are not intended for use on public roads.TJ'SEBIKES holds no responsibility or liability for any incorrect or improper use of this kit.
