Maximum output current:100A/120A/150A
Voltage:40V-100V
Connector:XT60H-M
Used For: Wire 2 Batteries in Parallel / Double Capacity
Working mode: Two Battery balance discharge module
Weight: 309 g
Dust plugs：QS8
Shell material: Aluminum Alloy

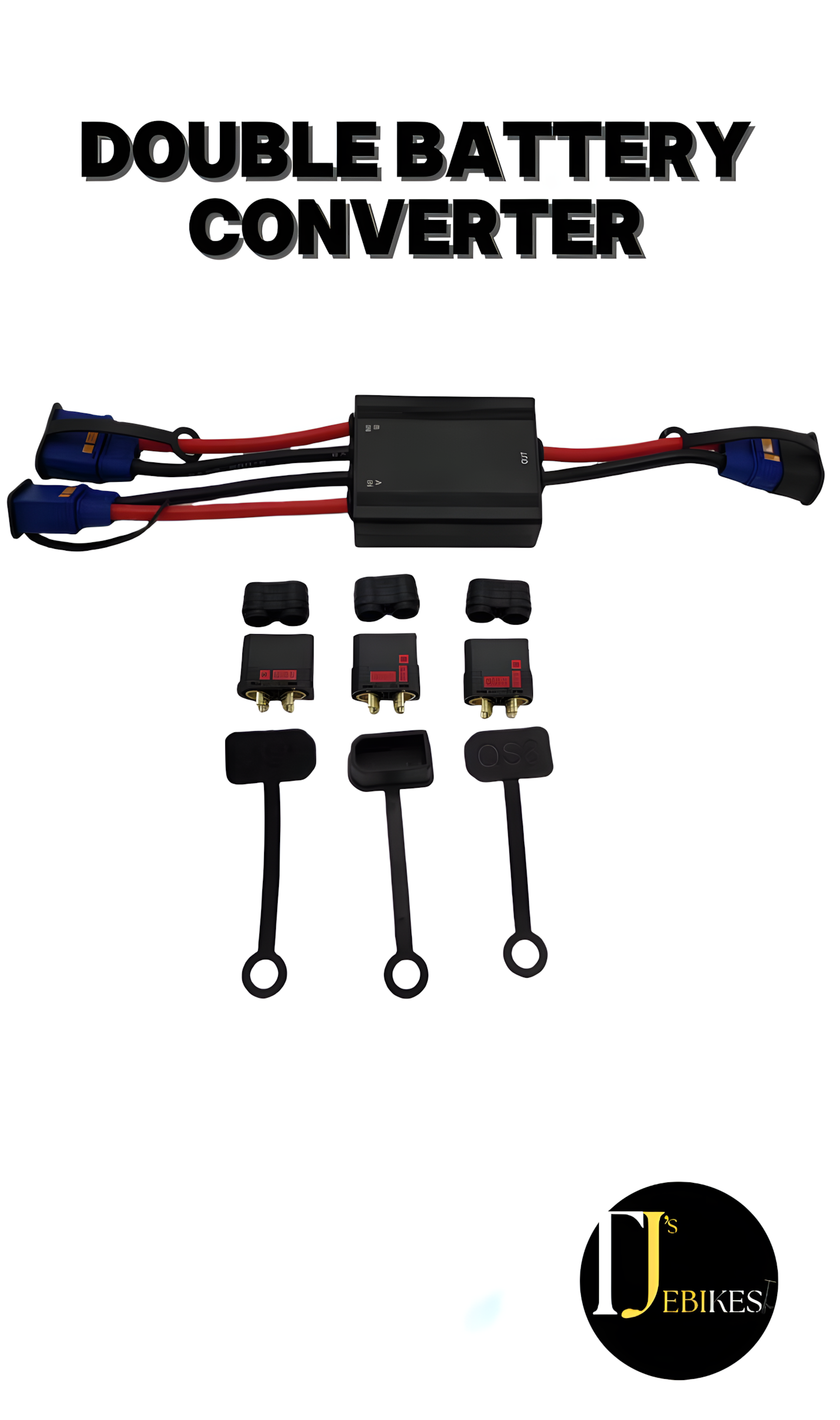

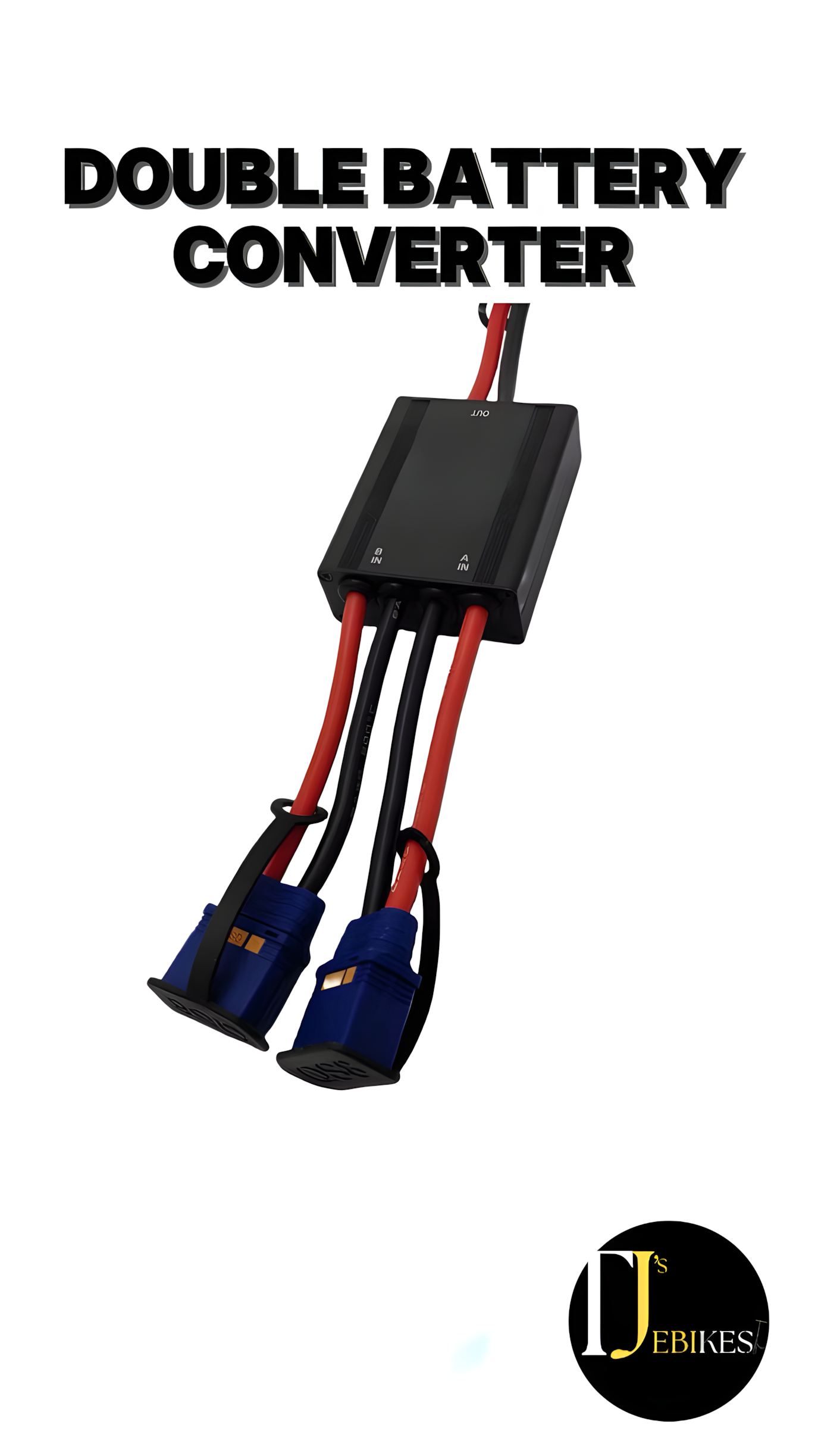

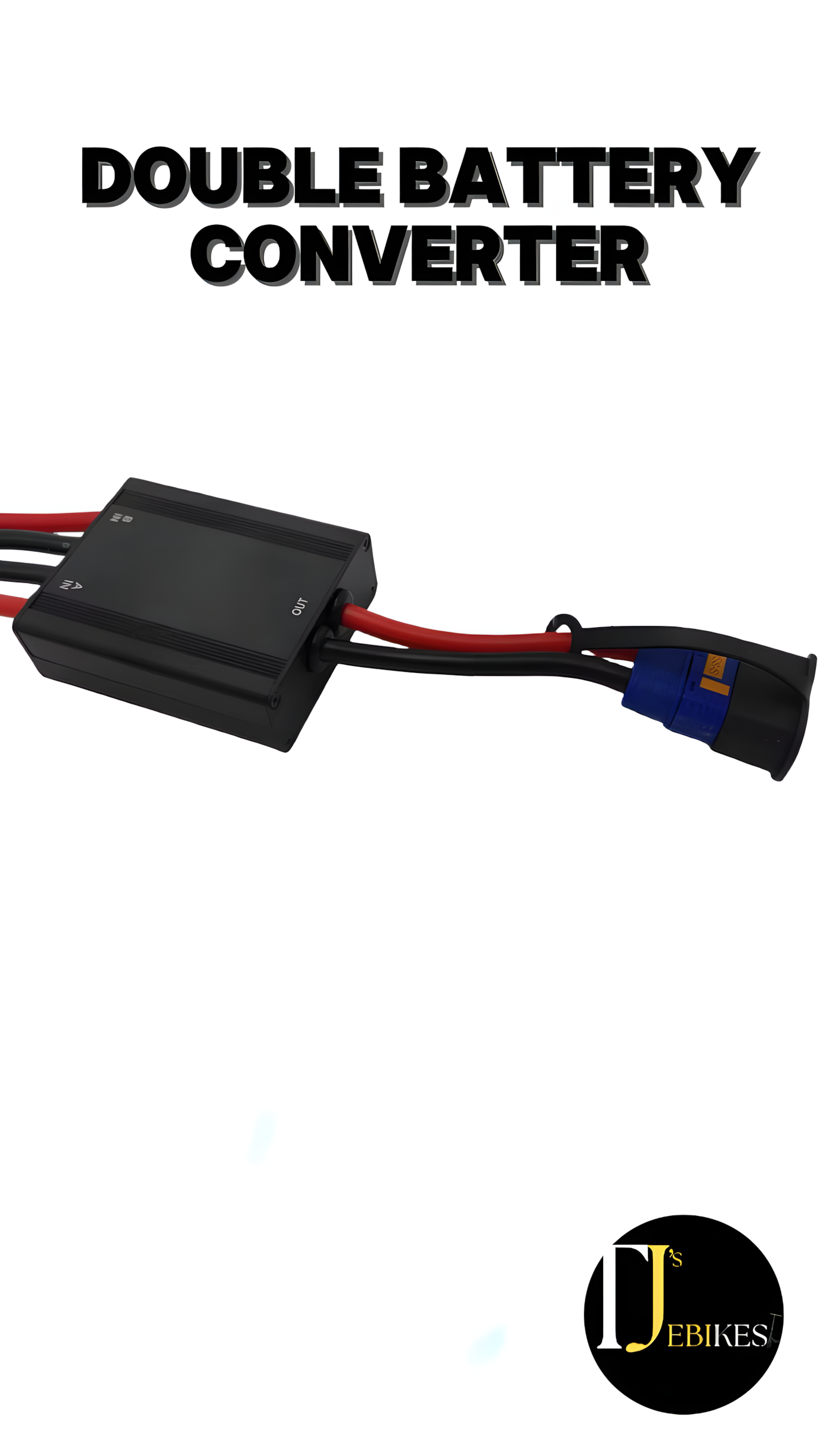

Dual Battery Pack Balance Parallel Connection Module (Dual discharge)
Dual Battery Pack Switcher Module can manage two battery packs which fixed on your bike, low power, Consumption design
real-time detect the voltage of both two battery packs, Battery on-line check
This module can make both two batteries to discharge together to power the ebike , it will auto compare the voltage of each battery
and adjust the current output for each battery
This dual battery balance module works as this way: firstly will compare which battery pack has higher voltage then will discharge
higher voltage battery pack firstly till same voltage as another battery pack, then will discharge both batteries together till end
This module will discharge one battery pack or both batteries together at same time. If you want another type dual
Module: Dual battery switcher parallel module, please click here, this module discharge both battery one by one and only one battery
at same time.
Parameter:
Maximum output current: 100A/120A/150A
Plug Connector: XT60H-M
Waterproof: yes
Application: Connect 2 Batteries in Parallel / Double Capacity, will discharge higher voltage battery and then once voltage same
will discharge both batteries together
The two battery's voltage need to be almost same, and the battery's capacity can be different.
Working Process:
1. MCU monitor voltage of both batteries in real time and send the voltage value by UART (Only if UART interface is available).
2. Automatic Battery working detecting. Switch to the battery and discharge it, if only one battery is connected with this module.
3. If the voltage of two batteries is not same, module will discharge battery with higher voltage firstly till two batteries voltage be
same then will discharge both batteries together.
4. Two batteries will discharge together when two batteries voltage is same (Iout=Ia+Ib, Ia=Ib).
PRODUCT NUMBER 095
