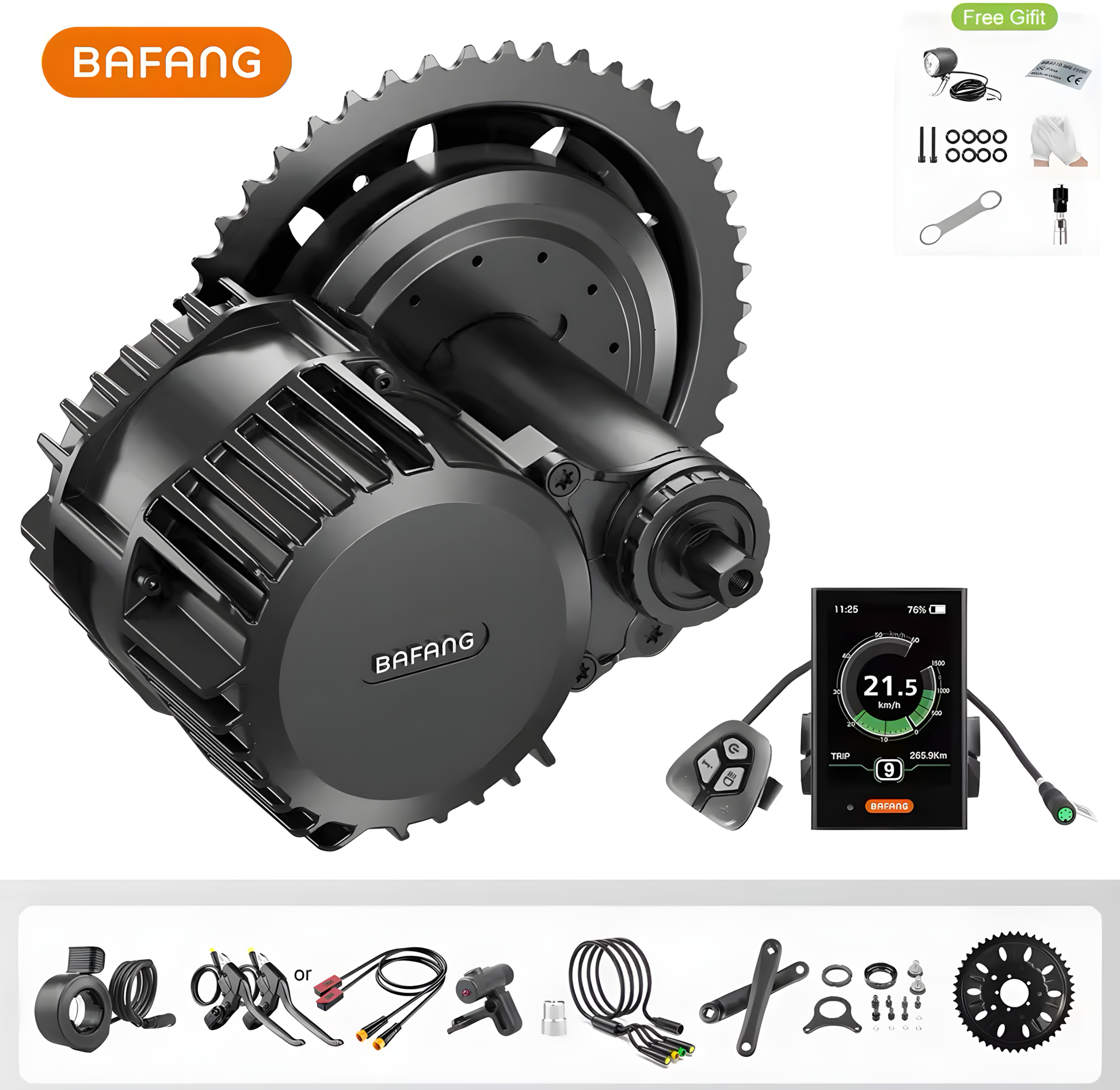

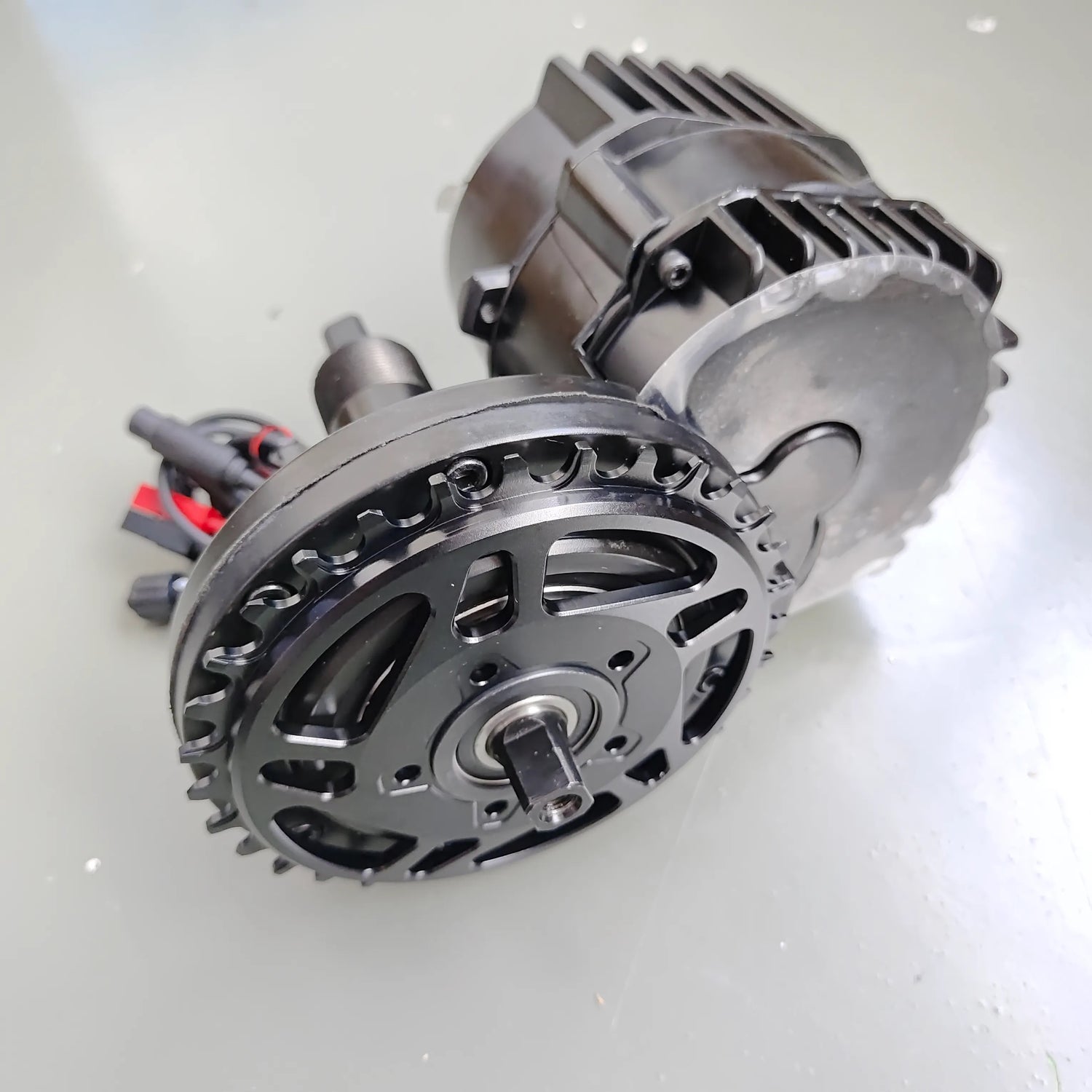

With an integrated PAS, this mid-drive motor has a rated power of 1000W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. This motor is black.
Warm Tips: The 52V version needs to match rated 52V battery to work. If the battery you use is rated 48V, you need choose 48V version motor. Please kindly choose the right version based on the battery you use.

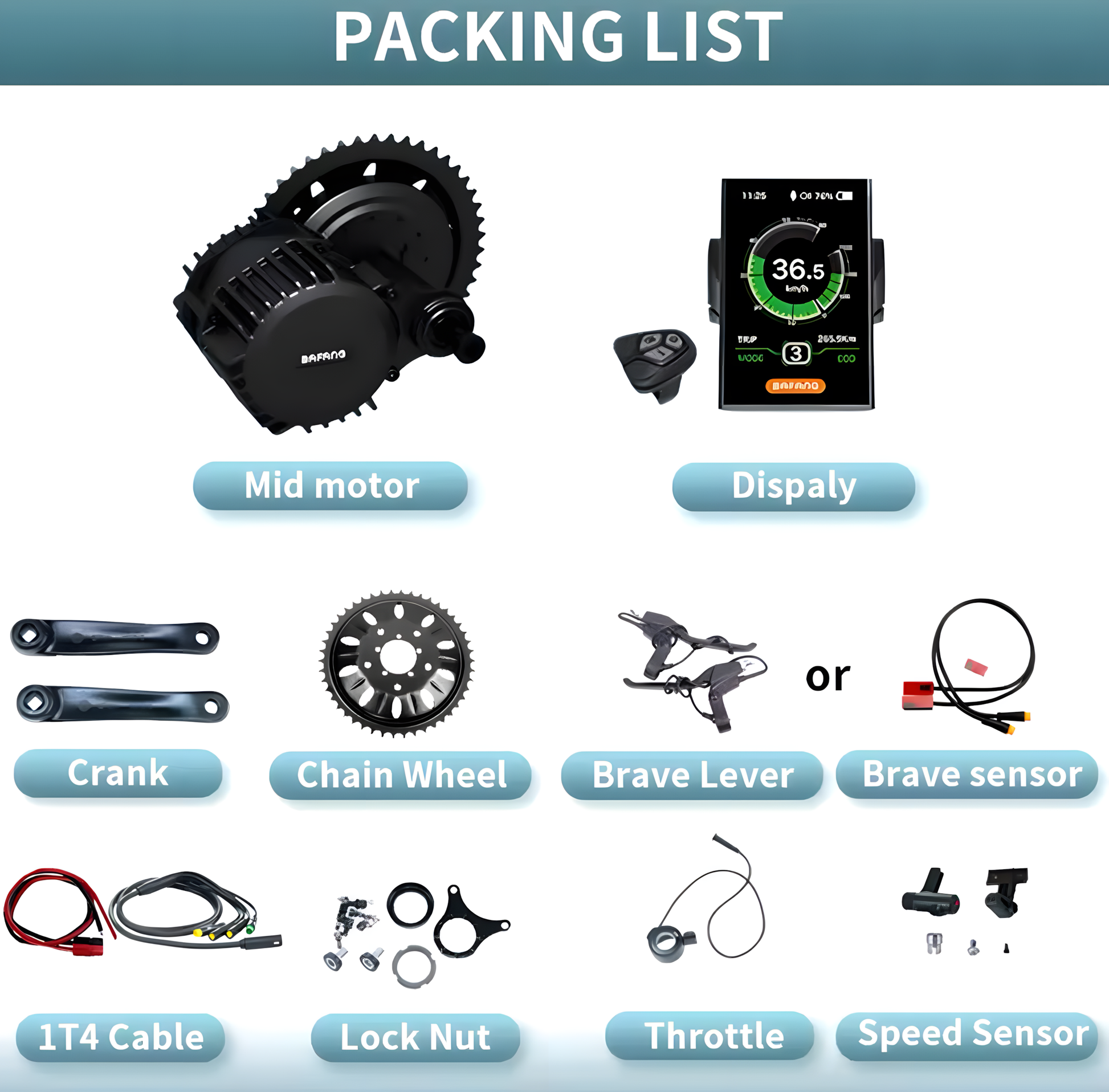

Package Included:1. BBSHD 48V/52V 1000W Mid-Drive Motor: 1 pc2. LCD Display + Operation Button: 1 pc3. Brake Levers: 2 pcs4. Thumb Throttle: 1 pc5. Waterproof Quick Release Wires: 1 pc6. Speed Detecting Sensor + Magnet: 1 pc7. Chain wheel : 1 pc8. Left Crank + Right Crank: each 1 pc9. Fixing Plate: 1 pc 10. M5*10 Nuts: 5 pcs 11. M6*12 Nuts: 2 pcs 12. M33 Nuts: 2 pcs13. ST 3.9 Nuts: 5 pcsSpecification:1. Voltage: 48V / 52V2. Power: 1000W3. Motor Weight: 4.8kgs4. BB Length: 68mm for mounting bike5. BB Length: 100mm 120mm for FAT bike6. Working Temperature of Display: - 20℃- 80℃.7. Waterproof Grade: IP65
About this item
✅【Universal Compatible】This BAFANG BBS03 Mid drive motor kit is designed to most bikes with 68-73mm ( length ) and 34-36mm (internal diameter ) bottom bracket, such as commuter bike,fat bike,mountain bike,road bike and so on. If you need the 100MM or 120MM bottom bracket, You could leave note or contact us to change .
✅Powerful and Reliable Motor】The HD 1000W motor max torque up to 160 N.m , the most powerful and reliable Mid Drive Kit on the market.This brushless motor will easily climb stairs, go well over 30mph on the flats and much, much faster down hills. Privode more powerful when you riding on the road or climb the mountains. It's a good gift for Wife/Husband and a special gift for the elder people
✅【Easy Installation & Three Riding Mode】 Easily convert your pedal bike into a electric bike, we will offer a installation video. Three riding Mode (E-bike & Pedal Assisted bicycle& Pedal Bike) for you to choose, you can choose the E-bike to enjoy a long time travel, and also exercise
PRODUCT NUMBER 094
Please be aware that these kits are not intended for use on public roads.TJ'SEBIKES holds no responsibility or liability for any incorrect or improper use of this kit.
