Parts included:

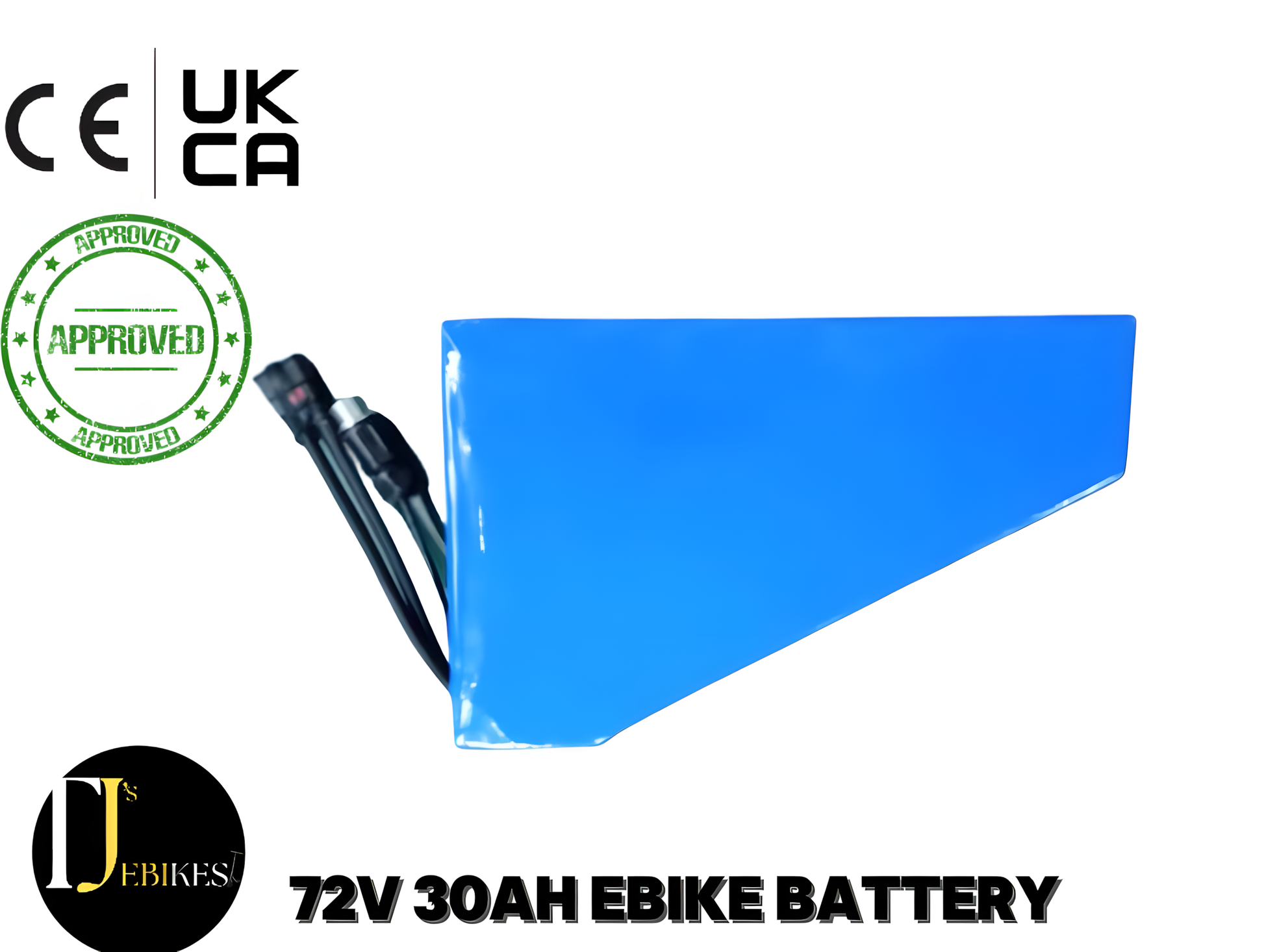

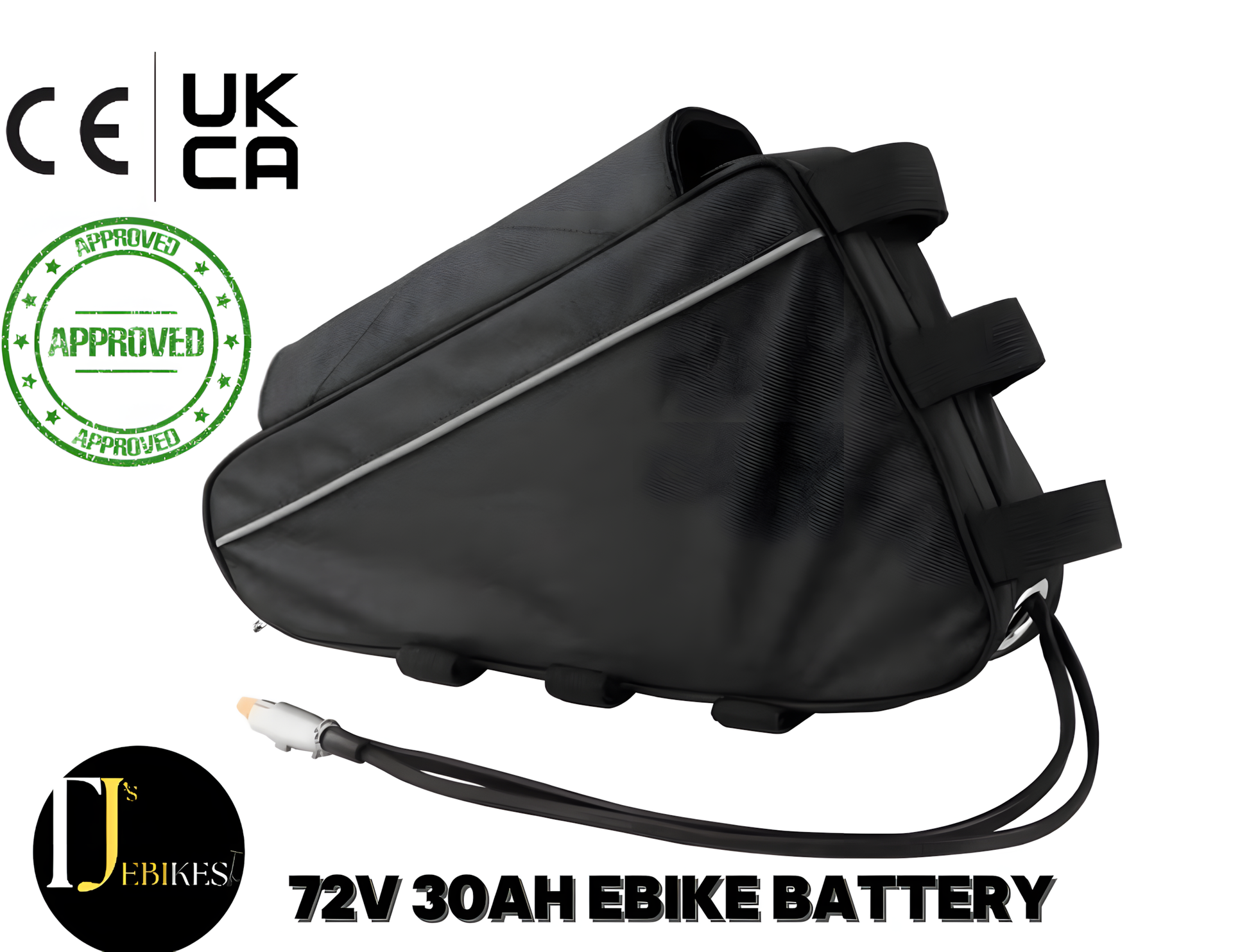

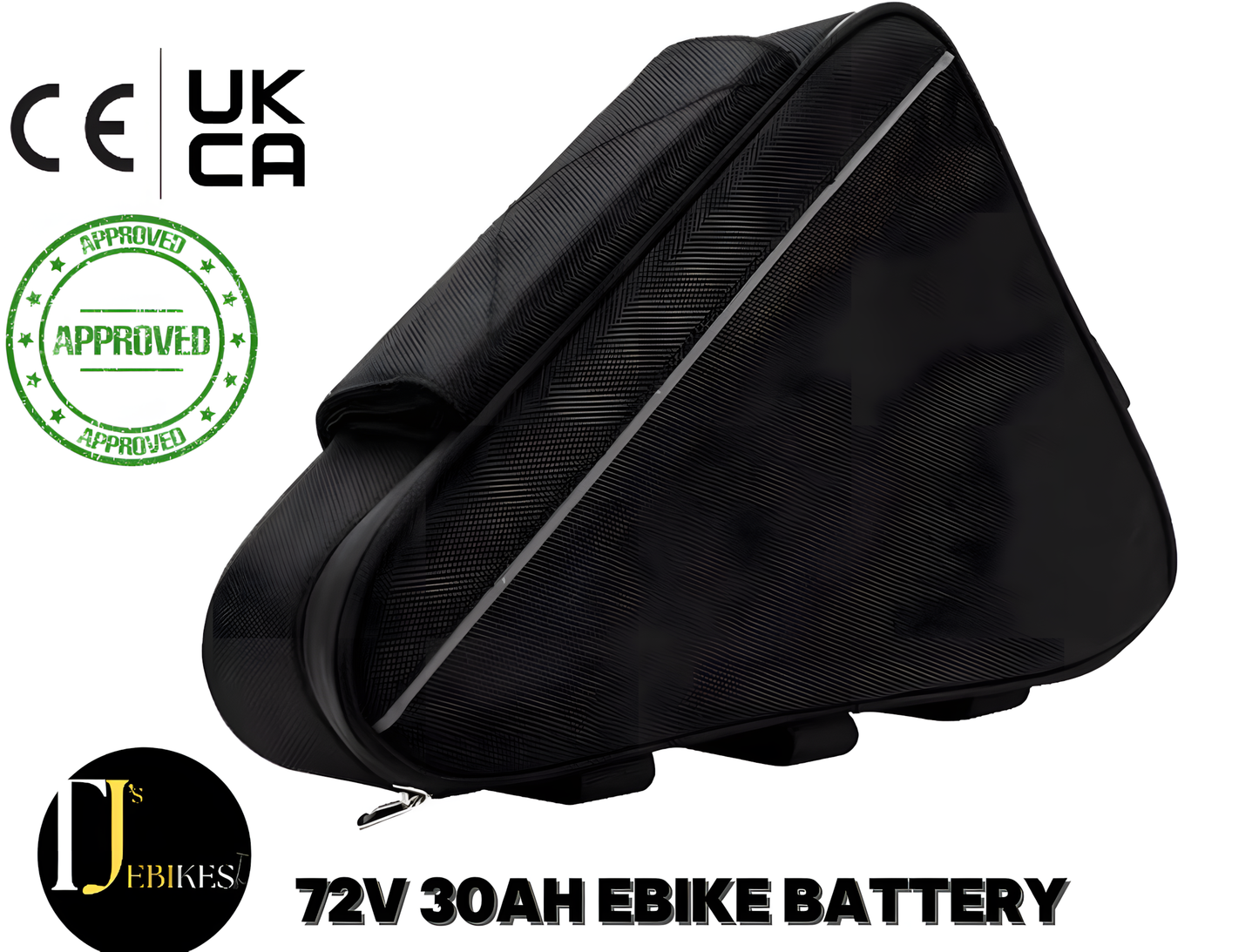

72V 30AH Battery, 84V 10A Charger, Triangle Bag, Extension Cable
130A ANTBMS board support BT APP
Discharge Plug: QS8.0 Female
Charge Plug: Linko 3-pin Male Plug
Extension Cable: QS8.0 Male to "O" ring
Please use this battery maximal for 72V 9000W
Specification:Battery Model72V 30AhNominal Capacity (AH)30AhNominal Voltage (V)74VSource Resistance (mΩ)<15Cell Specification3.7V 5000mAH 5C Powerful SAMSUN 21700-50S CellCell Combination20-series, 6-parallelsCell Size21700 Cylinder CellDiameter: 21mm, Height: 70mmCell Quantity (parallel*series)120pcsDischarge Cutoff Voltage (V)60 +/- 1VCharge Cutoff Voltage (V)84VRated Discharge Current (A)30AMaximum Continuous Discharge Current (A)130A (Limited by BMS Board)Maximum Continuous Charge Current (A)130ACharge ModeCC/CVStandard Charge Current (A)2ACharge Time under Standard Charge Current (Hours)18hFast Charge Current (A)10ACharge Time under Fast Charge Current (Hours)3.6hCharge Temperature Range0 - 60 ℃Discharge Temperature Range-20 - 60 ℃Battery SizeSize in PhotoCharging Cycles> 1000 cycling timesBattery Net Weight12kgsBattery Gross Weight(include charger,bag and packing)15kgsBattery ApplicationFor less than 72V 9000W Motor and controller
PRODUCT NUMBER 188
