Very important Notice:
This controller can only work without display or with our display, please never use it with your own display (because program is different)
Why 3-mode Controller?
Support Hall Sensor Mode (Sine Wave Mode)
Support Non-Hall Mode (If your motor hall sensor burned or not match, controller will still work in square wave mode)
Self-learning Function: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!

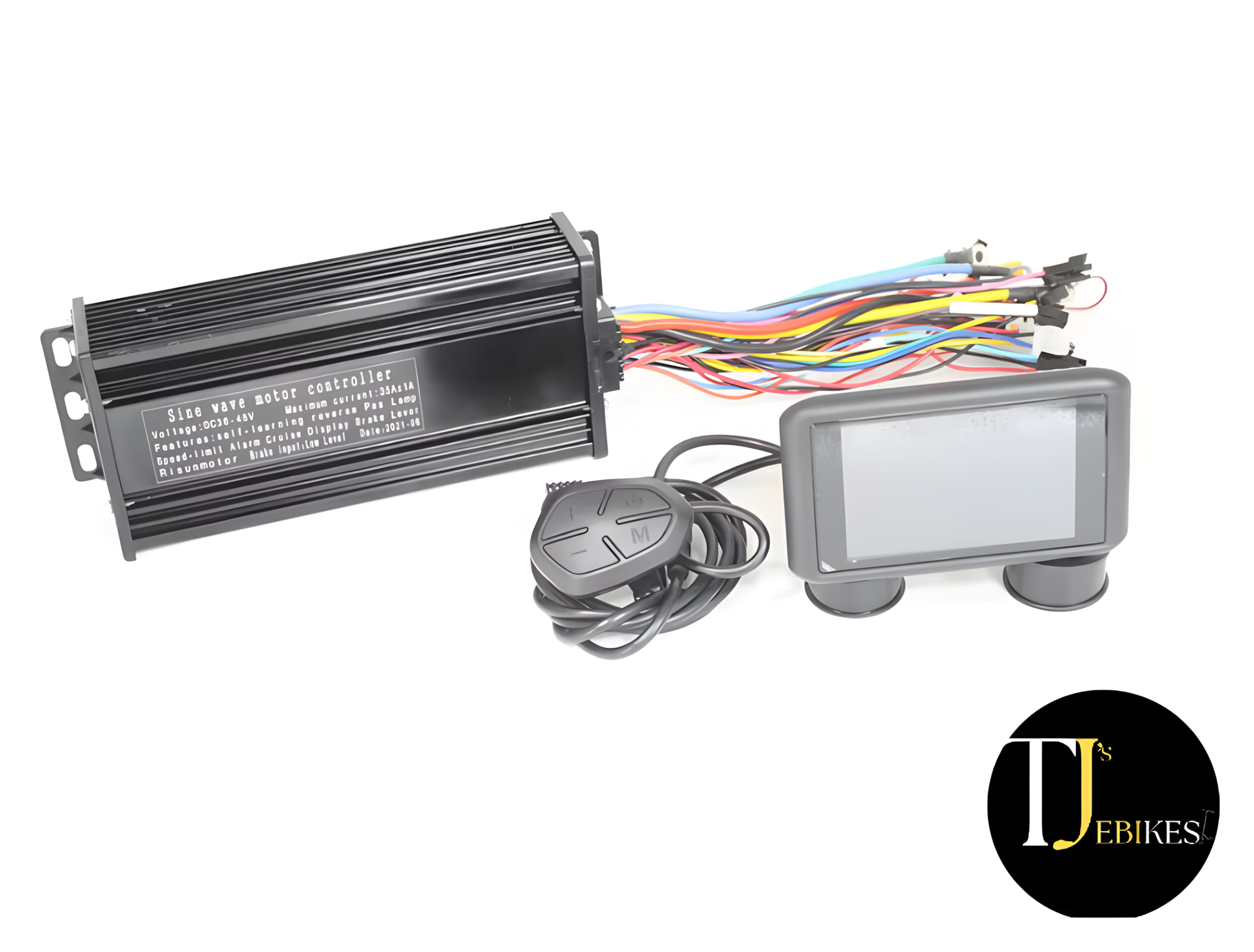

Parts Including:

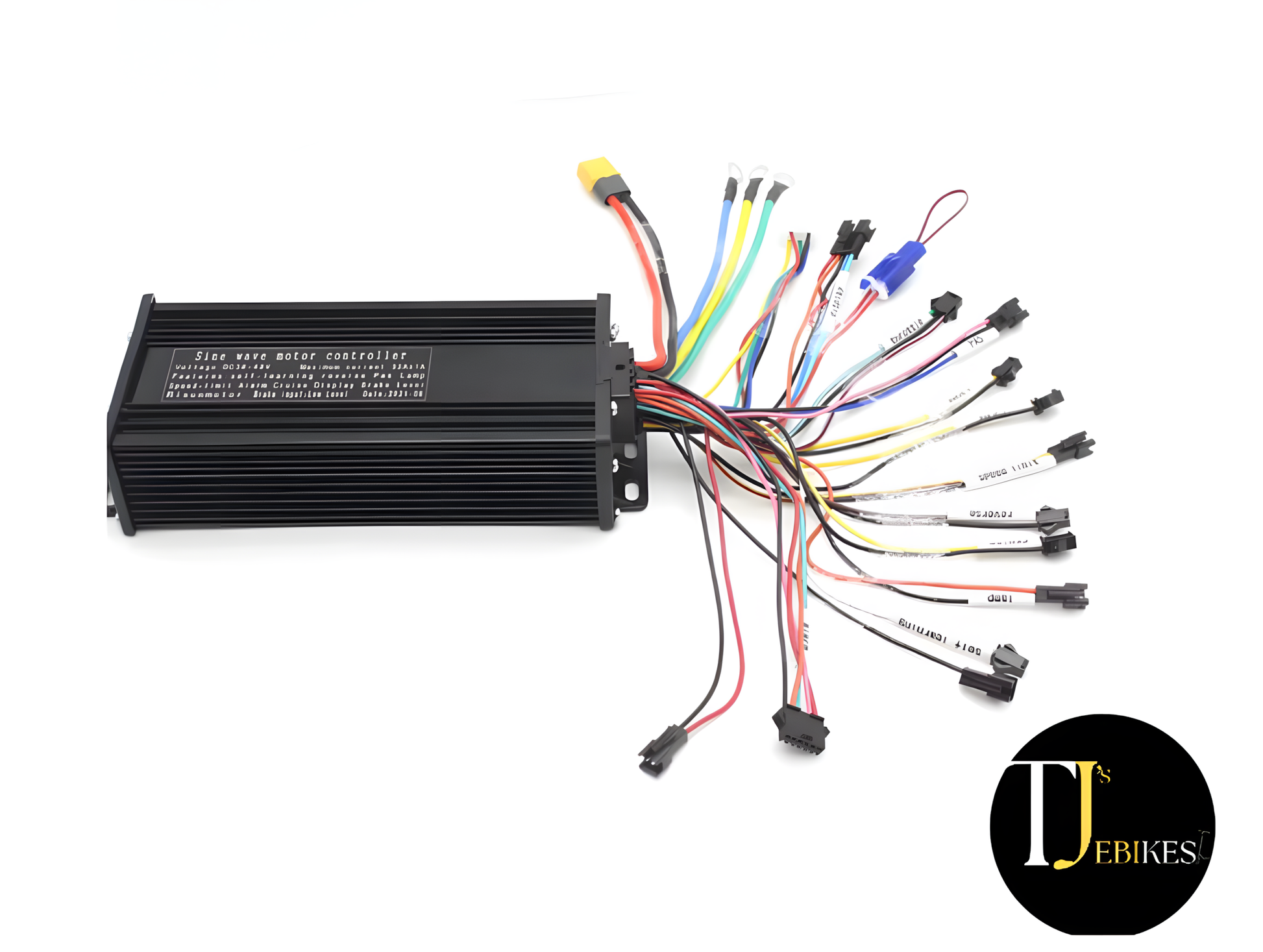

1. 15 MOSFET 45A 48V, 52V, 60V, 72V Universal Voltage 1500W-3000W Intelligent 3-mode Sine Wave Controller

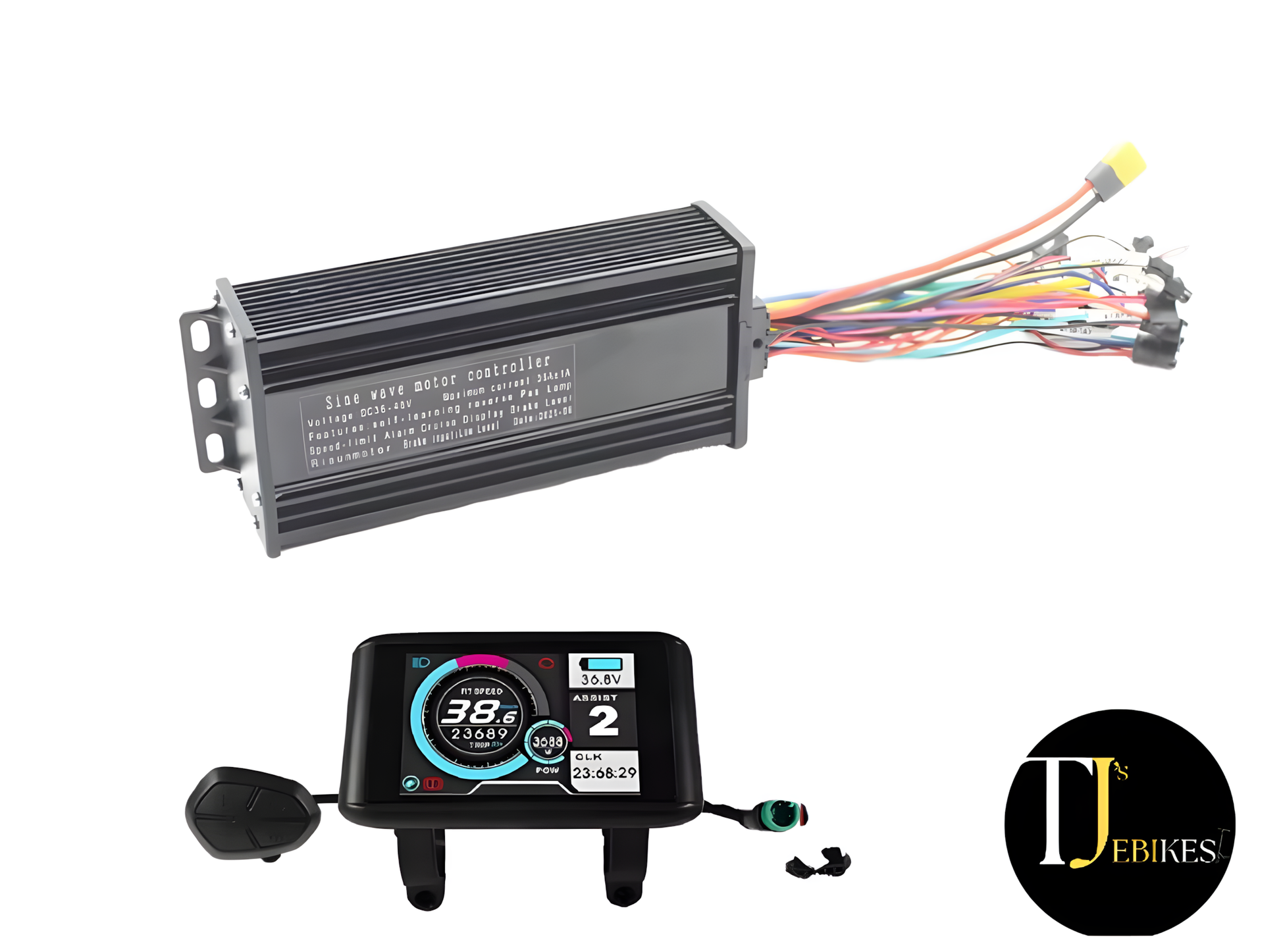

2. 48V, 52V, 60V, 72V UKC1 Colorful Display (Optional)
Advantage:
1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall mode, self-learning) and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 48V/52V/60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Off, Weak, Standard, Strong), Electric Braking and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 48V 1056W/ 52V 1144W/ 60V 1320W/ 72V 1584W
2. Peak Power: 48V 2160W/ 52V 2340W/ 60V 2700W/ 72V 3240W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212x86.5x48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65
PROUDUCT NUMBER 143
