Very important Notice:
This controller can only work without display or with our display, please never use it with your own display (because program is different)
This is dual motor controllers: Two pcs Controllers control two pcs motors, need two controllers work with two motors, and with one display, one throttle, one set brakes, one PAS(if needed).
Why 3-mode Controller?
Support Hall Sensor Mode (Sine Wave Mode)
Support Non-Hall Mode (If your motor hall sensor burned or not match, controller will still work in square wave mode)
Self-learning Function: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!

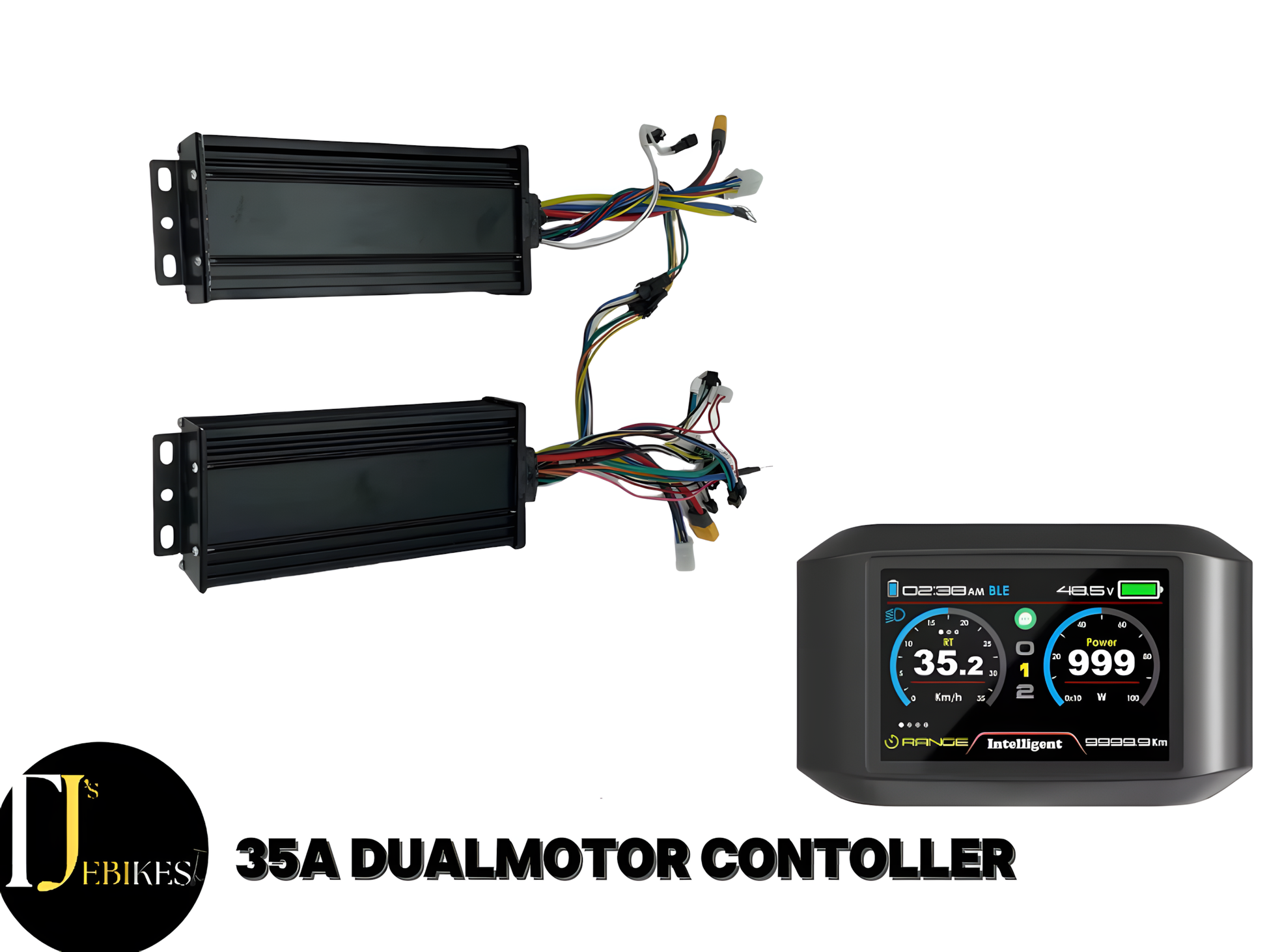

Parts Including:

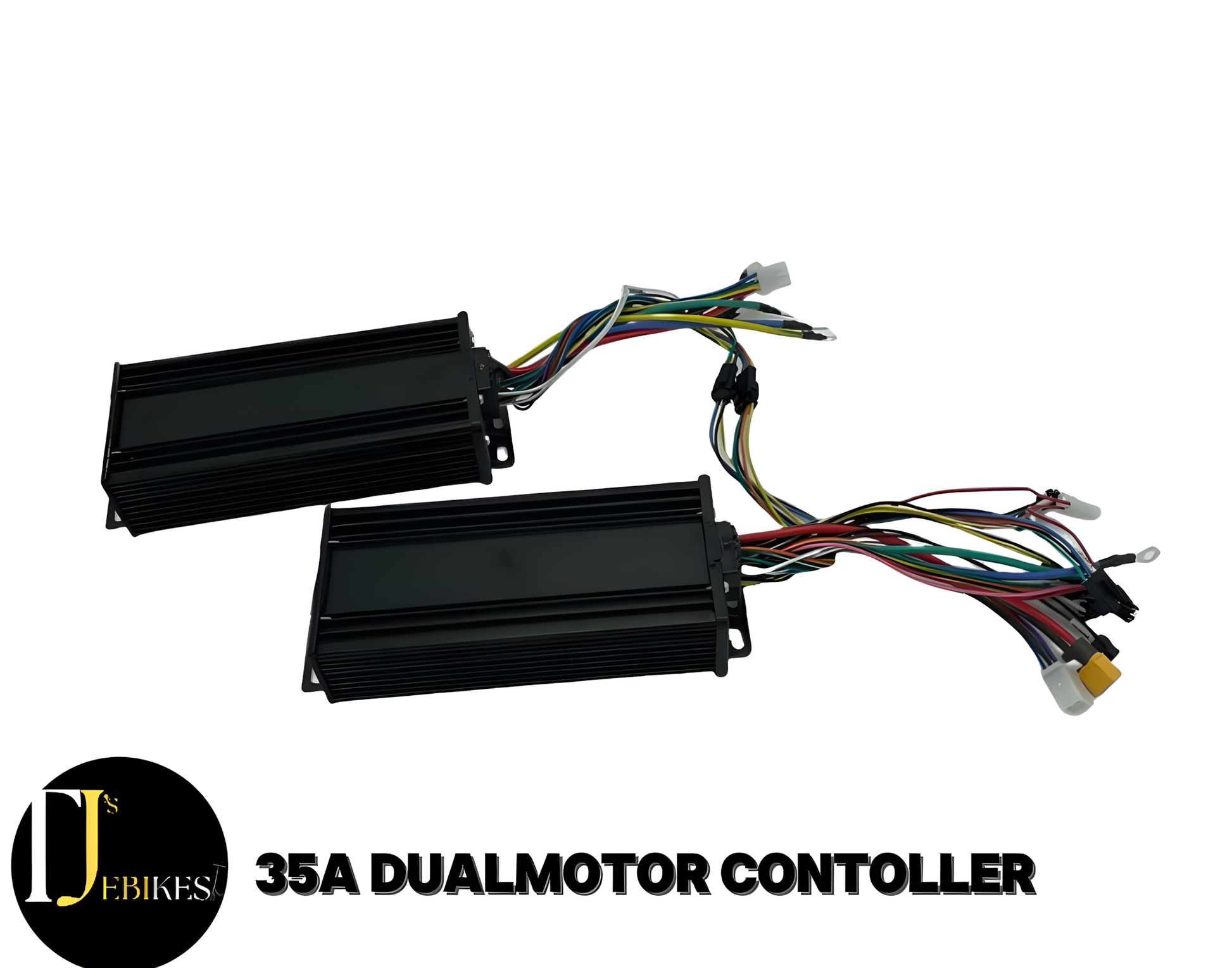

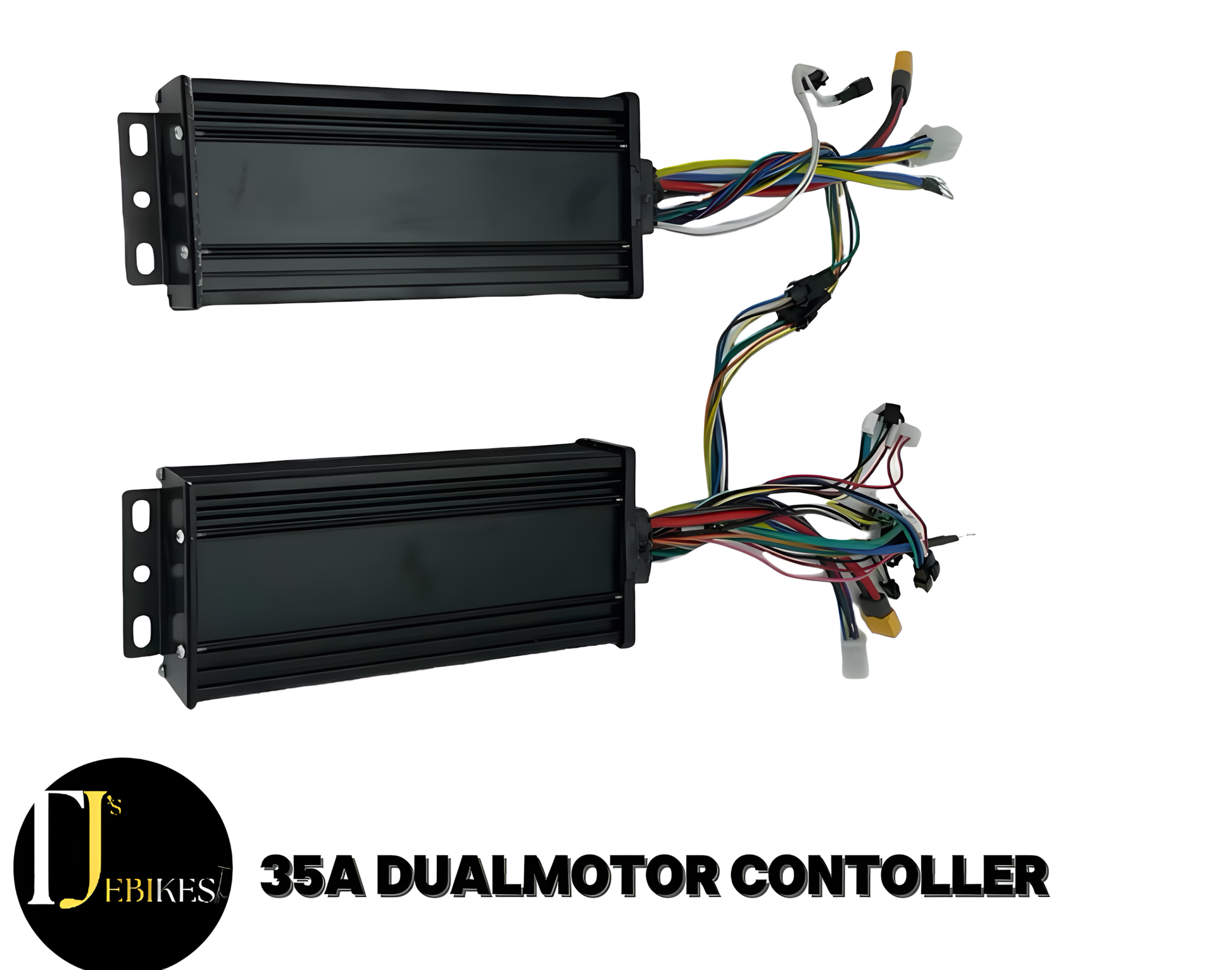

1. 12 MOSFET 35A 36V, 48V, 52V Universal Voltage 1500W-2000W Intelligent 3-mode Sine Wave Controller: 2 pcs

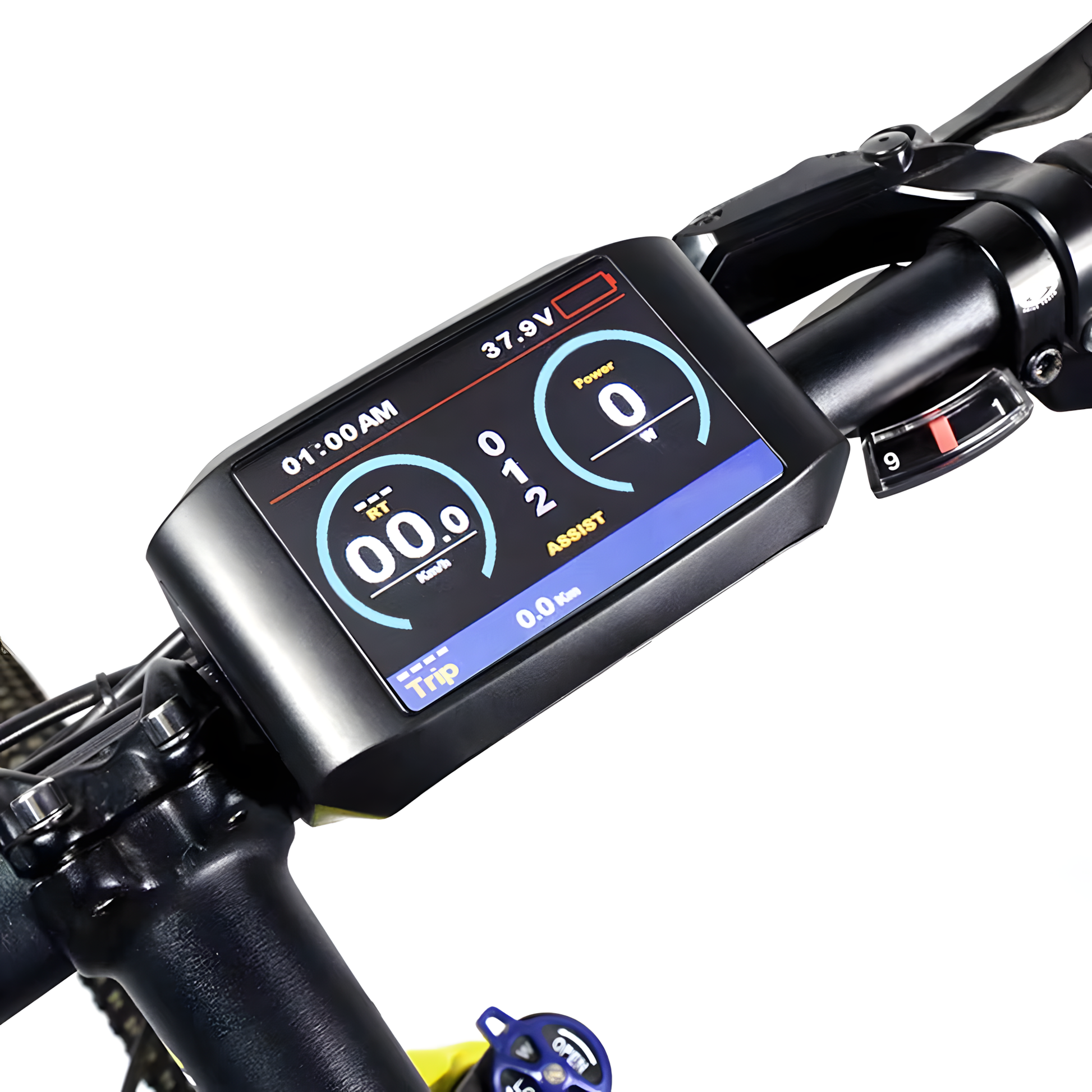

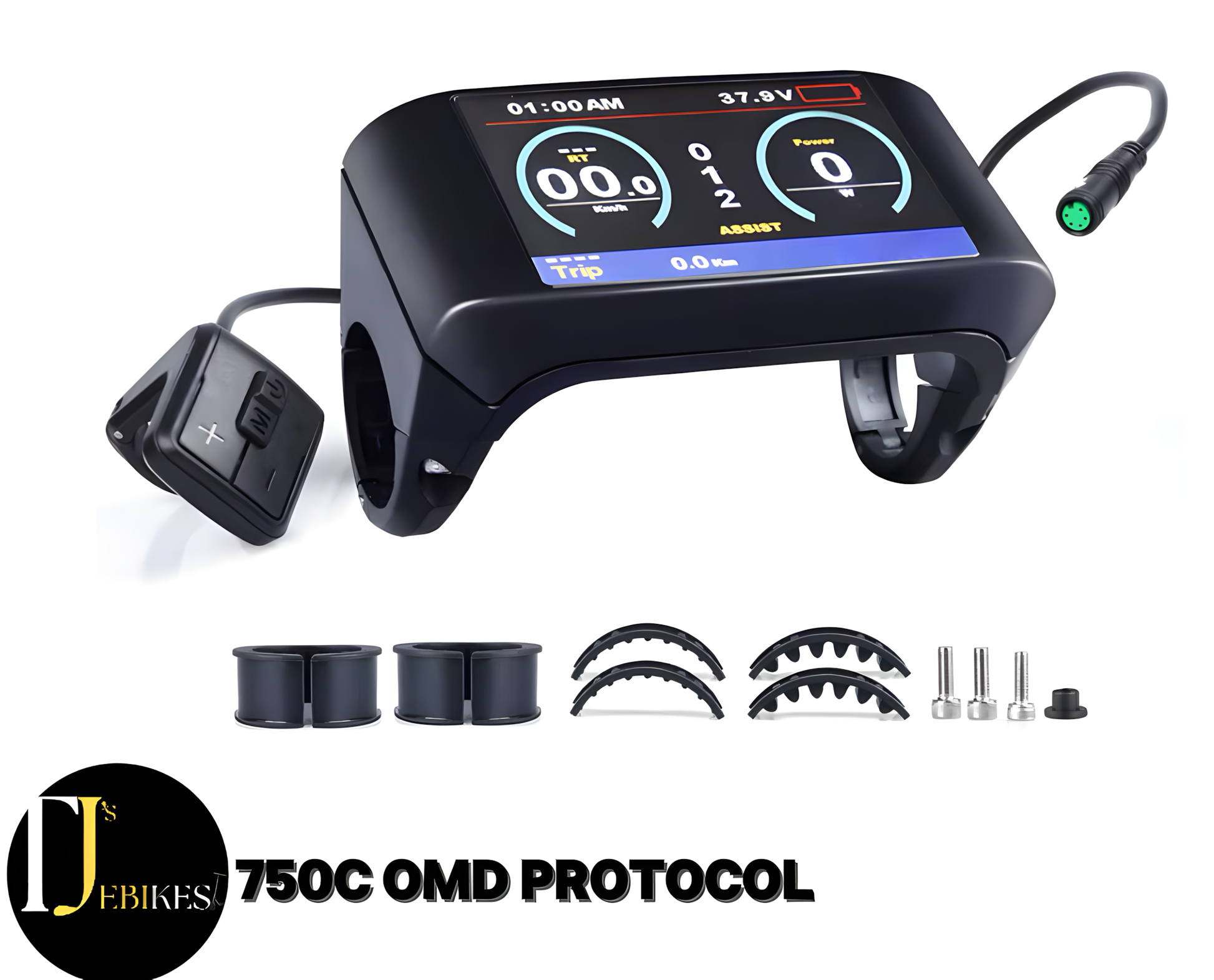

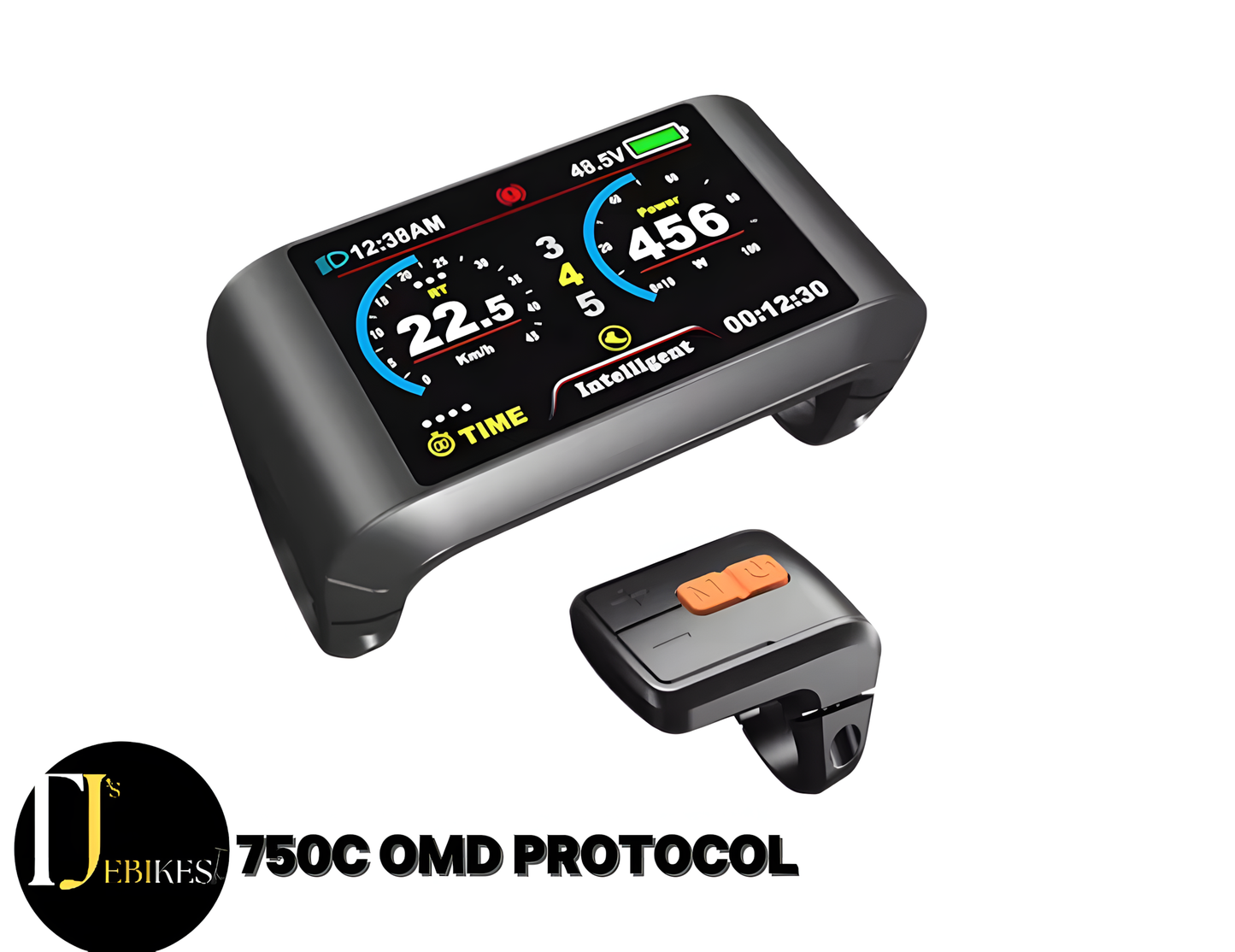

2. 36V, 48V, 52V 750c display 1pc
Advantage:
1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall mode, self-learning) and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 36V/48V/52V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Off, Weak, Standard, Strong), Electric Braking and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 36V 612W/ 48V 816W/ 52V 884W
2. Peak Power: 36V 1260W/ 48V 1680W/ 52V 1820W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
PRODUCT NUMBER 190
