Very important Notice:
This controller can only work without display or with our OMD Program display, please never use it with your own display (because program is different)
Why Self-learning Controller?
Self-learning Function:
Wrong color wires combination of 3-phase wires between motor and controller, doesn’t matter, self-learning process can correct it!

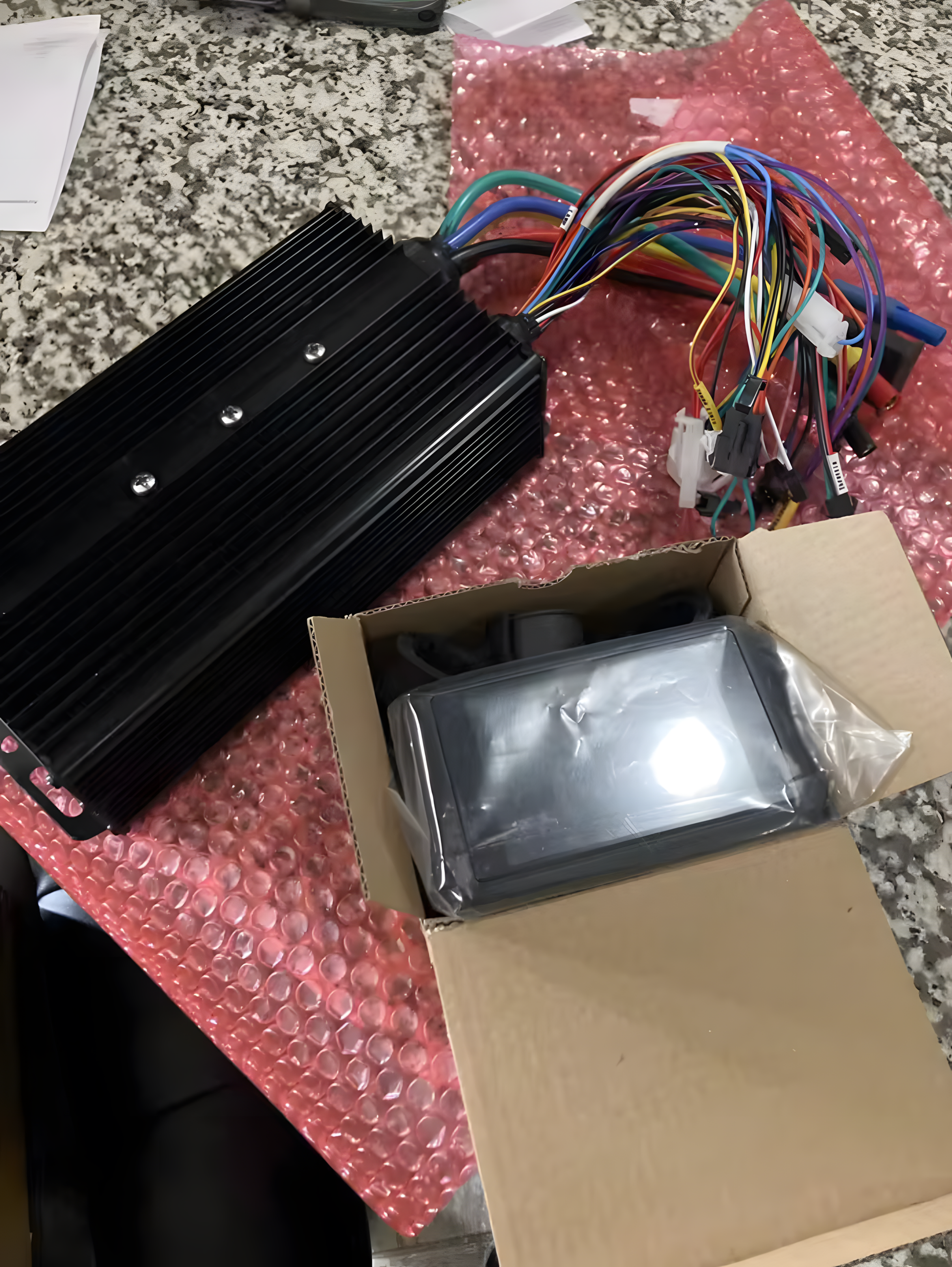

Parts Including:

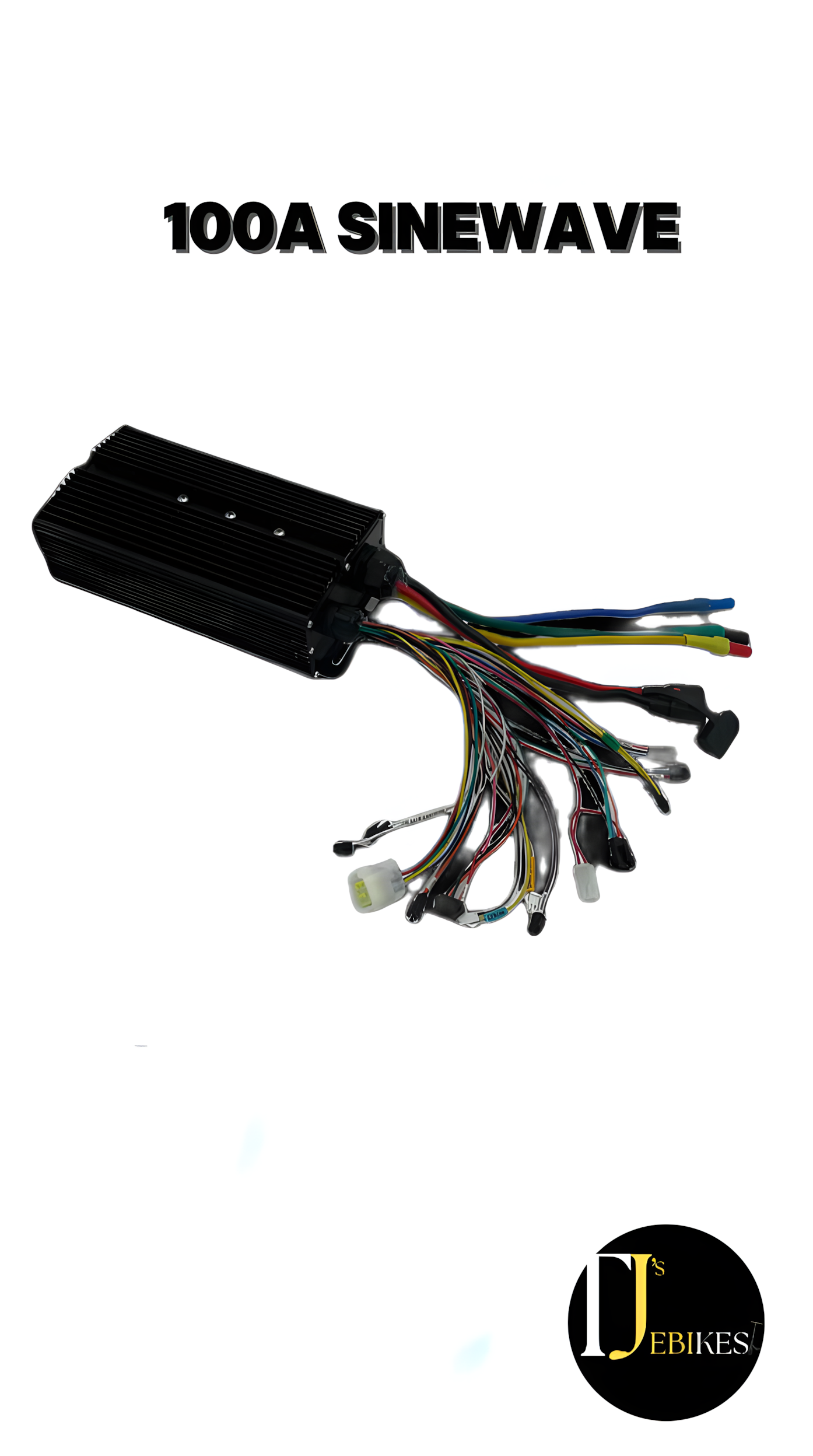

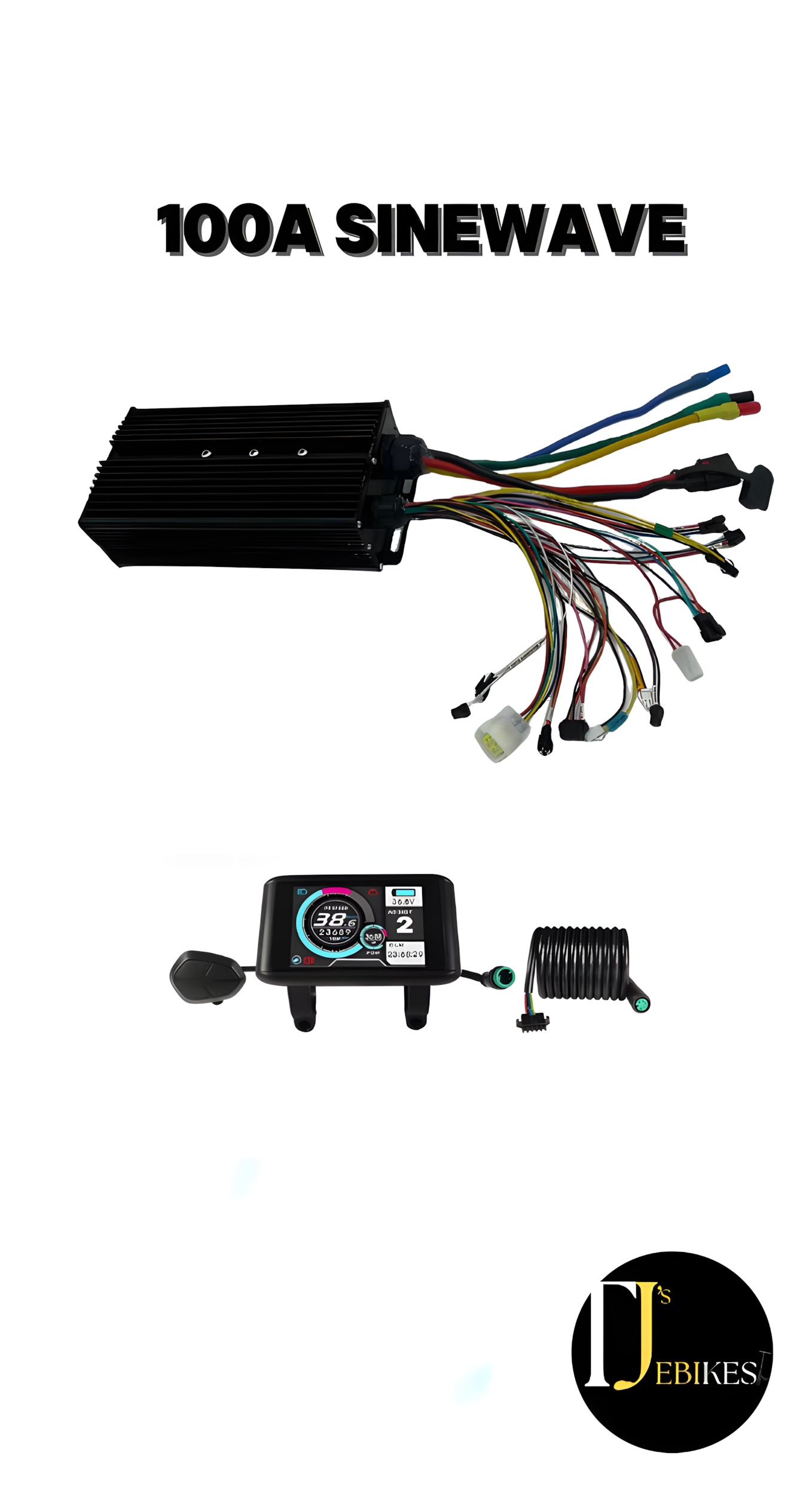

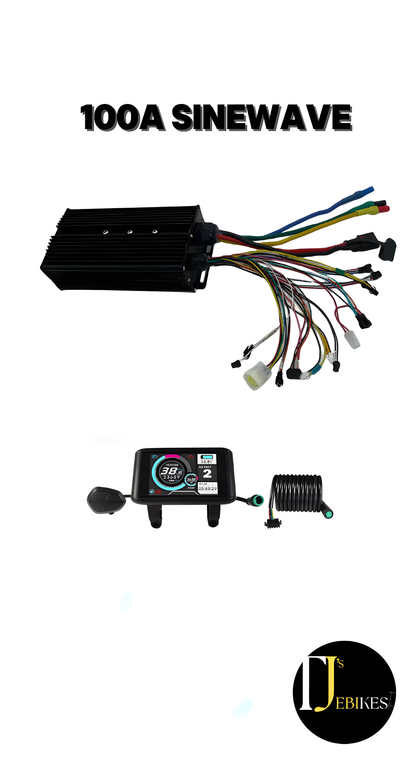

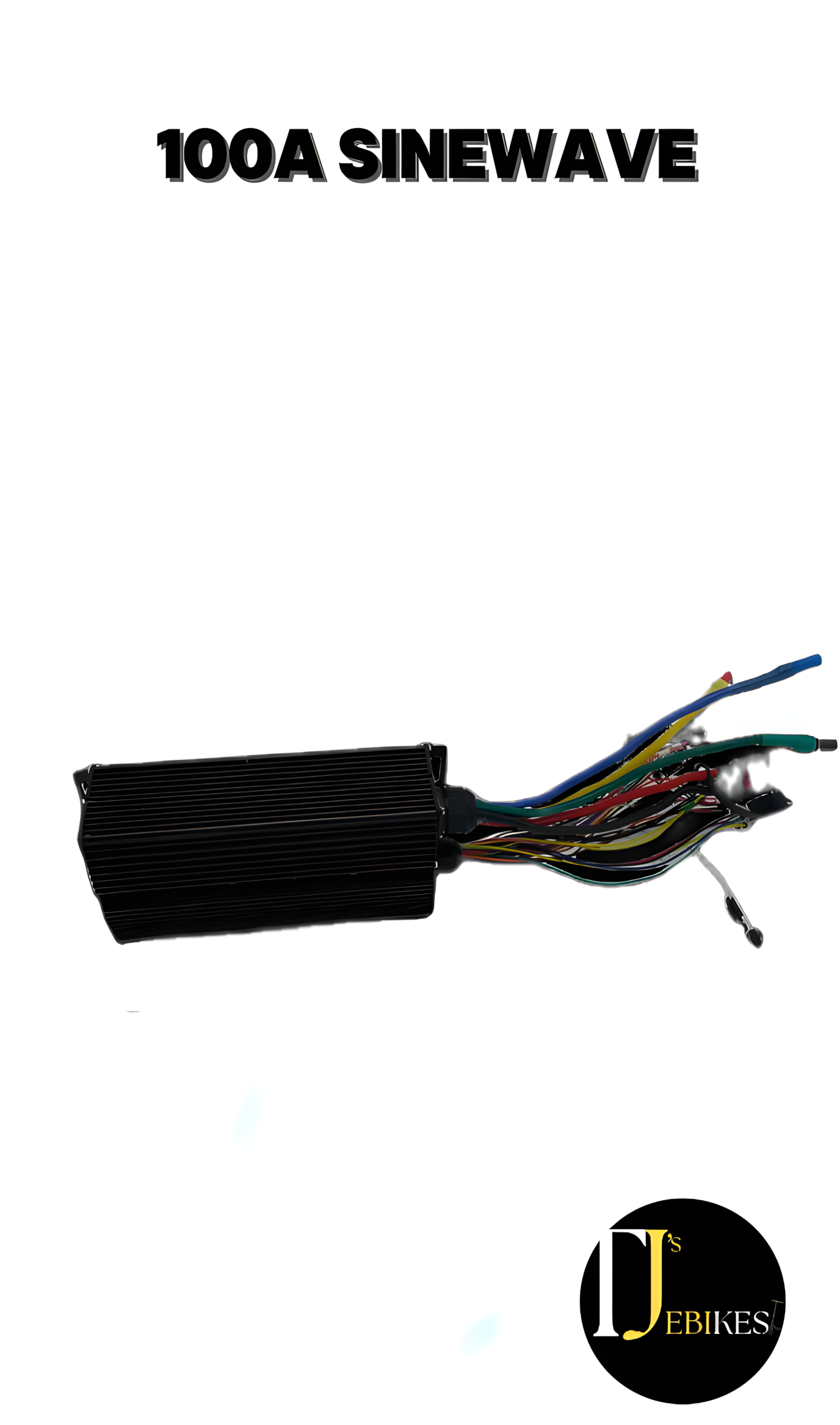

1. 24 MOSFET 48V 52V 60V 72V Universal Voltage 4000W-5000W Intelligent Sine Wave Controller
2. XT150 Male Connectors x 3pcs, QS8 Female Connector x 1pc
3. 36V, 48V, 52V, 60V, 72V UKC1 Colorful Display (Optional)
Advantage:
1. Sine Wave Controller which support self-learning and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 48V/52V/60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Can set different level: Off, Standard, Weak, Strong), Speed detecting (Magnet quantity simulated or internal speed sensor) and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 48V 2400W/ 52V 2600W/ 60V 3000W/ 72V 3600W
2. Peak Power: 48V 4800W/ 52V 5200W/ 60V 6000W/ 72V 7200W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. 3-Phase Connectors: XT150 Female Plugs
7. Power Input Connector: QS8 Male Plug
8. 3-Phase and Power Input Cable Size: 8AWG (8mm2)
9. Size: 252x121x74mm
10. Net Weight: 1900g
11. Waterproof Grade: IP65
LCD Specification: 3.5 inch IPS screen
1) Input Voltage: 24V/36V/48V/52V/60V/72V
2) Rated operating power: 1W
3) Max operating power: 5W
4) USB charging port: 5V 500mA
5) Off leakage current: < 1uA
6) Support current to controller: 100mA
7) Size: 111.1*66.8*82.8mm
8) Waterproof grade: IP65
9) Operating temperature: -20~70℃,
PRODUCT NUMBER 091
